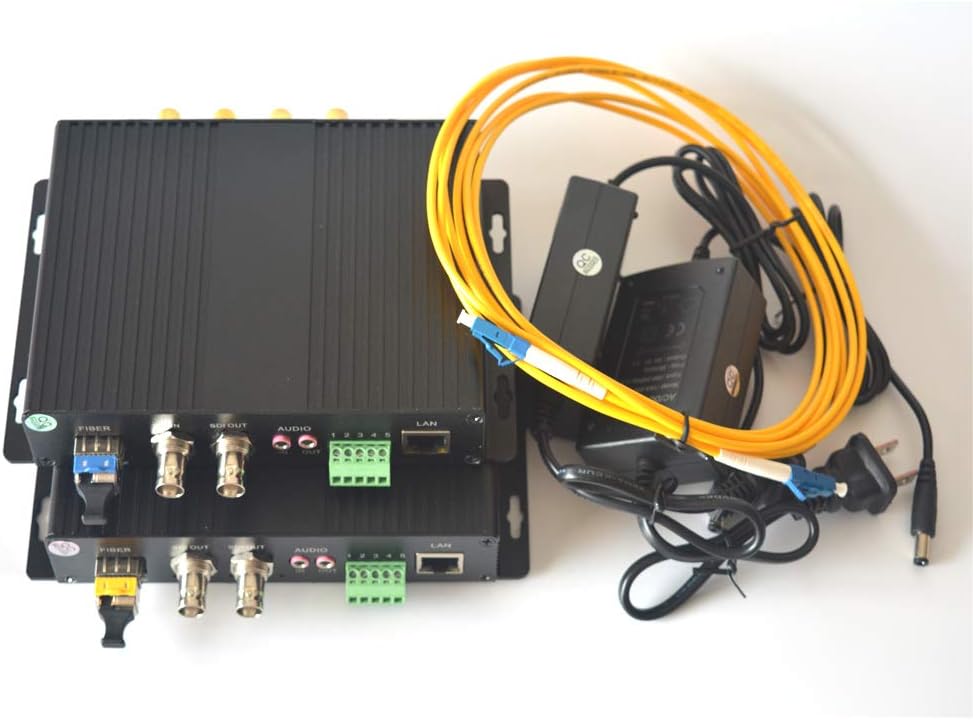

3G-SDI Extender Over Fiber Optic, SDI Video/Ethernet/RS422 Data to Fiber Converter,LC-LC Singlemode Fiber up to 12.4miles, Multimode up to 500m,A Set (TX and RX)
Product details
| Management number | 215133767 | Release Date | 2026/04/12 | List Price | $239.60 | Model Number | 215133767 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Function: 1 x 3G-SDI with loop out. 1 x 10/100Mbps Ethernet. 1 x 3.5mm Audio (Bi-directional). 2 x Audio (Bi-directional, RCA connector). 1 x RS-422 data (Bi-direction). LC fiber connector, Singlemode fiber 0-20Km. Specification: Working voltage:AC100V~240V,DC5V/2A(US/EU/UK/AU plug adapter optional) Outer box size: 172x112x32mm (LxWxH) Weight :1.2Kg per set. Package: carton box Package Include: 1 x 3G-SDI Transmitter 1 x 3G-SDI Receiver 1 x 3M LC-LC SM fiber patch cord 2 x External Power supply adapters (US/EU/UK/AU standard is optional) 1x User Manual
- It can extend one 3G-SDI or HD-SDI Video/Audio signal over a fiber optic to far end, long transmission distance, Single-mode fiber can up to 12.4 Miles (20Km). with two 3.125G SFP optical module, LC simplex port. HD-SDI signal is with embedded audio signal.
- Support SMPTE424M(3G-SDI), SMPTE292M(HD-SDI), SMPTE259M(SD-SDI) and DVB-ASI, Video resolution is compatible with 1080P@60/30/25, 1080i@60/50 59.94 and more.
- With clock recovery, clock shaping, this function can make sure the video image no flicker, high quality design.
- Support Video loop out and Bi-directional RS422 data, Support embedded digital audio stream and 10/100Mps ethernet (RJ45 port) which can extend your networking signal through a fiber optic to far end up to 12.4miles, also can use for IP camera with RJ45 port and More.
- Plug and play, No need for on-site adjustment. Simply plug in BNC port and LC optical port, and it will work immediately.
| UPC | 723496426993 |
|---|---|
| Brand | Wekuant |
| Color | Black |
| Unit Count | 1.0 Count |
| Item Weight | 1.2 Kilograms |
| Manufacturer | Wekuant |
| Model Number | 3G-SDI Extender Over Fiber Optic |
| Input Voltage | 5 Volts |
| Connector Type | RJ45 |
| Current Rating | 2 Amps |
| Number of Items | 1 |
| Number of Ports | 7 |
| Power Plug Type | Type A - 2 pin (North American) |
| Package Quantity | 1 |
| Compatible Devices | Camera, PC, Television |
| Warranty Description | 1 year |
| Specific Uses For Product | Camera |
